STEEL
Angle
Use the form below to make your custom sized product and get a price quote
Description

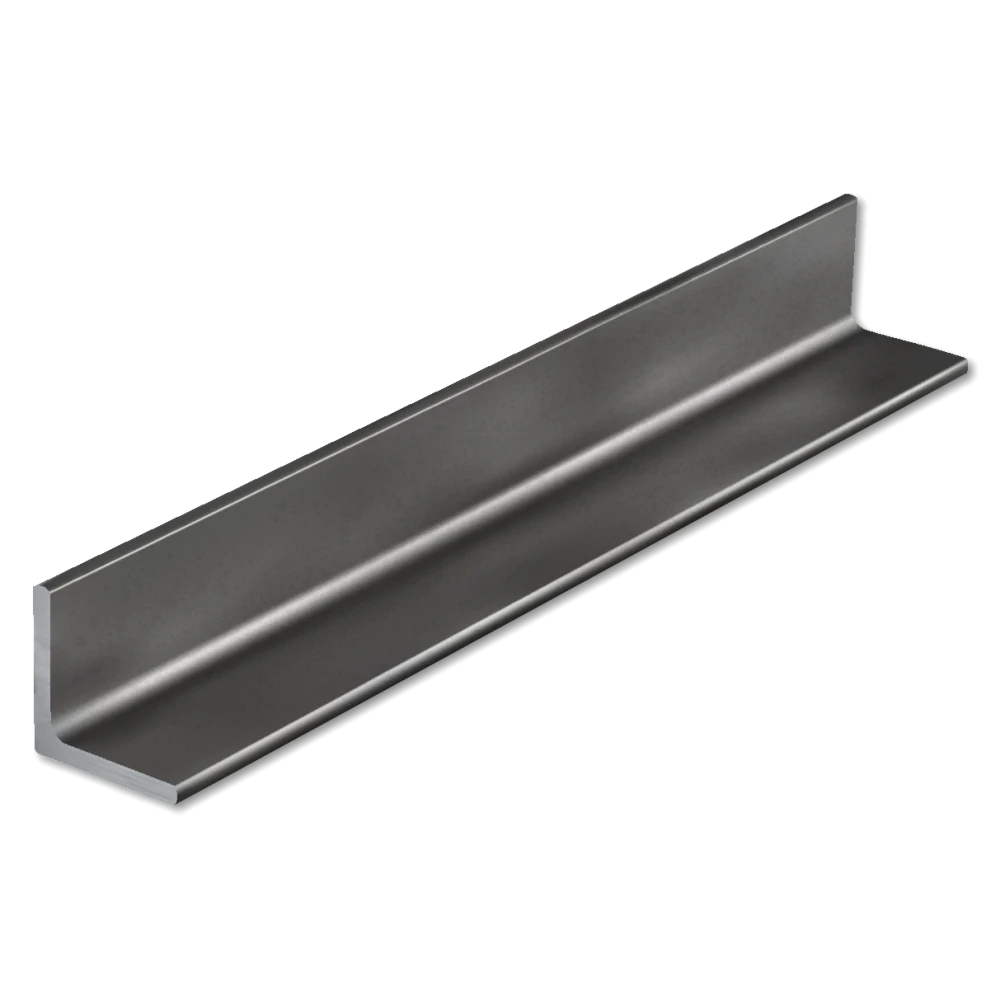

Our structural steel angles are crafted from highly weldable, formable carbon steel—most often the versatile A36 grade. They’re available in standard L‑shapes from 1½" × 1½" up to 6" × 6" and lengths ranging 6 ft‑20 ft. Each piece is cut, straightened and quality‑checked before leaving our Texas warehouse.
Why choose SteelNow?
Same‑day or next‑day shipping across Texas – perfect for urgent projects.
Consistent dimensions and tight‑tolerance control.
Technical experts ready to recommend the right grade, size, and coating.
Custom cutting and coating options (galvanized, powder‑coat, or plain) available on request.
Uses
Steel angles are a go‑to solution for many structural applications, including:
Load‑bearing frames for trailers, trucks and agricultural equipment.
Bracing members in industrial machinery and equipment.
Reinforcement for building foundations and steel‑frame structures.
Custom fixtures, racks, shelving and other space‑saving designs.
Support structures for bridges, parking garages, and HVAC racking.
Whether you’re building a new product or repairing an existing one, our angles provide the strength and reliability you need.
Mechanical Properties
Typical Mechanical Properties (A36)
Yield strength: 36 ksi (250 MPa)
Tensile strength: 58–80 ksi (400–550 MPa)
Elongation: 20 % in 2‑in. gauge
Shear strength: 0.6 × yield strength
Modulus of elasticity: 29,000 ksi (200 GPa)
Physical Properties
Physical Properties
Density: 7.85 g/cm³ (0.283 lb/in³)
Melting point: Approx. 1,500 °C (2,732 °F)
Magnetic: Yes – ferromagnetic
Corrosion resistance: Depends on coating; we offer hot‑dip galvanizing, powder‑coat, or plain steel.
Did You Know?
Did you know? An L‑shaped steel angle offers two‑way support, resisting bending in both the vertical and horizontal planes. That makes it ideal for bracing applications where space is limited.
Configure Specifications
1. Select Grade
A500/A513
1018
A36
A53
4140/4142
A606/A588A
12L14
AR 500
1045
4130
4140
4330
4340
A514
A516
A572
A588
A992
G90
The A500 and A513 steel grades are high‑strength structural steels designed for demanding load‑bearing applications. Both grades meet ASTM standards (A500 for structural shapes and A513 for welded plates) and provide excellent weldability, durability, and corrosion resistance.
Key Properties: Yield strength 345 MPa (A500) to 415 MPa (A513), tensile strength up to 550 MPa, good ductility.
Typical Uses: Bridges, building frames, crane girders, heavy‑duty tanks, and other structural components.
Benefits: High load capacity, reliable performance under cyclic loading, and cost‑effective compared to premium alloys.
Choosing the right grade ensures compliance with engineering specifications and long‑term reliability for your projects.

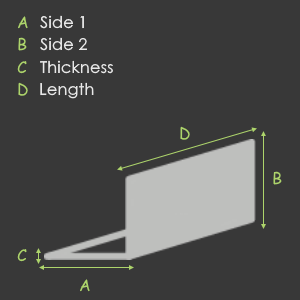

2. Dimensions
12" – 240"
3. Quantity
Estimated Weight (per piece)
15.9525 lbs
Price / Item
Market Price
Total (1 piece × 15.95 lbs)
Market Price
